Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board, for AC/DC 532V

AED

182

.81

Including VAT

Highlights

This product is internationally sourced and shipped. Specifications and packaging may differ from local versions. Electronic items may include an international plug requiring a UAE-compatible adapter. Warranty, where applicable, is provided by the seller and may not be covered by the manufacturer.
Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board, for AC/DC 532V

Global Store

Sold & Delivered by : Desertcart

4.4

(30 Ratings)

Get It Delivered By

Free Delivery

Scheduled

24 Oct - 27 Oct

Ships from outside the UAE.

Description

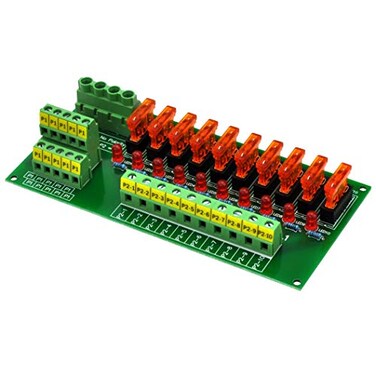

Panel Mount Power Distribution Fuse Module Board. , Work voltage: AC or DC 5~32V, total current rating 40Amp. Dimensions: 150mm x 72. 5mm x 29mm (W x L x H). , Input terminals: pitch - 7. 62mm/0. 3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. , P1 output terminals: pitch - 5. 08mm/0. 2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2. 5 slotted screw. , P2-1 to P2-10 output terminals: pitch - 7. 5mm/0. 295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2. 5 slotted screw.
